雕刻機裝置專用
JGD-80H主軸電機系列

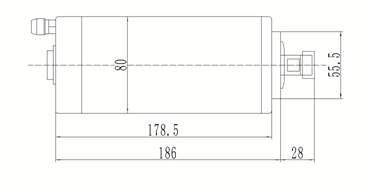

●機械尺寸(Dimensions:Unite=MM)
●主軸電機優點(Aduantages spindle motor):
轉速工作范圍寬、低速大扭矩輸出、低噪音、高效率,結構緊湊,壽命長,性價比高。
Operating speed range, low speed high torque output, loe noise, high efficiency, compact structure,longlife,high cost performance.
●技術參數(Performance)
型號 | 額定電壓V | 輸出轉速rpm | 輸出轉矩Nm | 功率W | 效率? | 防護等級 |
JGD-80H | AC220 | 150-20000 | 2 | 1.5 | ≥90% | 54 |
